Products
AEC takes pride in the quality and integrity of each tailored solution we build, from examining and mapping parameters of the project, to its completion. AEC is unique with the incorporation of our experience, analysis, planning, synthesis and support. Because AEC provides custom based solutions, we can satisfy a broad range of engineering needs across many different industries. Below are a few solutions we have successfully delivered.

Dynamometers and Test Stands

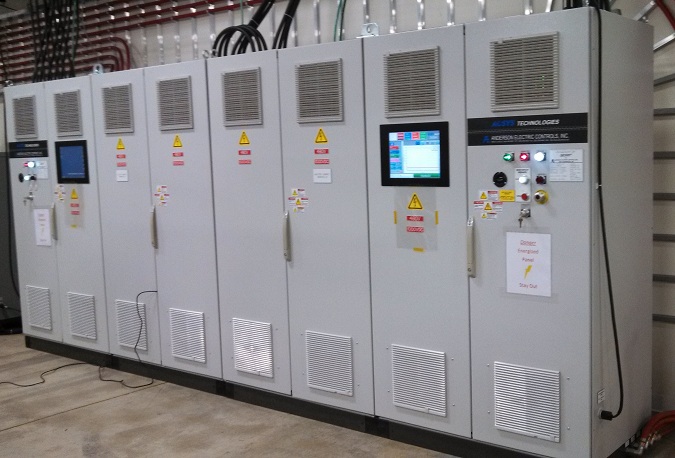

High Performance Power Supplies and Battery Cyclers
Anderson Electric Controls, Inc. is an expert in the world of high-fidelity power supplies and battery cyclers. Features include programmable voltage/currents, battery simulation, remote operation, and more. Standalone and portable units available. Designed specifically for R&D testing in the automotive, solar, and aerospace industries.

  • Custom voltage / current / power levels available
  • Standard product line:
  • Power from 36 kW to 2.64 MW
  • Voltages from 600 VDC to 2000 VDC
  • Current from 600 ADC to 10,000+ ADC
  • Easy-to-use touchscreen included on all models
  • Integrated profile mode for user-written test sequences
  • Integration with Battery Management Systems (BMS) available
  • Integration with Environmental Chambers available
  • Remote control options available (fiber-optic, fieldbus, etc.)
  • Solar (PV array) simulation add-on available
  • Battery simulation add-on available
  • Hardware-in-the-Loop (HiL) add-on available



  • Custom Power-Conversion (Grid-Tie, AC/DC, DC/DC)
    AEC has the engineering capabilities to tackle custom power conversion projects, including bidirectional AC/DC and DC/DC (boost, buck, buck/boost) converters, grid-tie applications, high switching frequency (50+ kHz) applications, and many others. Contact us now for a quote.

  • 10kW up to 3+ MW (custom power levels available)
  • Custom footprints (container-packaged, standalone, etc.)
  • Liquid and air cooled designs
  • Custom and off-the-shelf hardware
  • Multiple fieldbus interfaces (Ethernet, Modbus, CAN, etc.)
  • Renewable energies (wind, battery, solar)
  • High speed motors (400 - 1200+ Hz)
  • R&D applications (design, testing, etc.)
  • Custom control algorithms (adaptive, model reference)

  • Electronic Load Banks
    Electronic Load Banks
    Our new line of electronic load banks was designed to test aerospace generators in production or R&D environments. Unlike other electronic load products, our load banks use custom FPGA technology and cutting-edge silicon devices to provide high quality load waveforms with very low harmonic content. Other features include:

  • Output power up to 300+ kVA (custom levels available)
  • Very small physical footprint
  • Requires smaller cooling system than passive load bank
  • Continuously variable power, power factor
  • Efficiencies >90% - save on electrical costs
  • Operate at higher power levels than distribution can handle
  • Can simulate unbalanced loads
  • Remote control available (Fiber-optic, Modbus, CAN, etc.)

  • Dynamometers and Test Stands
    Dynamometers and Test Stands
    We design and build custom dynamometer and test stand solutions. Our latest successes have been our advanced solutions in electric vehicle dynamometers and hybrid electric vehicle dynamometers. Below is a list of custom built dynamometers and test stands we offer:

  • Electric and Hybrid/Electric Dynamometers
  • High speed, high performance dynes for next-gen EV/HEV research and development
  • High power at high speed direct drive eliminates the need for a noisy gearbox
  • Full integration with AEC Power Supplies available
  • Data Acquisition options available suitable for EV motor and inverter development, battery development and testing
  • Aerospace Generator Test Stands
  • Transmission Dynamometers
  • Clutch Development Machines
  • Engine Pump Test Stands
  • Special Hydraulic Motor Dynamometers
  • Hydraulic Motor Test Stands
  • 'Iron Bird' Test Stands

  • Tunnel Boring and Mining
    Tunnel Boring and Mining
    We design and build custom electrics for tunnel boring and raise drill machines. We have been providing the electrics for these machines since 1969. Here is a list of custom electrics solutions we currently provide:

  • Tunnel Boring Machines
  • Raise Drills
  • Mobile Mining Machines
  • Spread Spectrum Digital Radio Systems




  • Building Products Building Products
    Here are some of the custom built building product we have offered:

  • Gypsum Knife Controllers
  • Gypsum Bundler/Trimmer Systems
  • Plywood Layup Lines
  • Veneer Feeder Systems
  • Flying Saws
